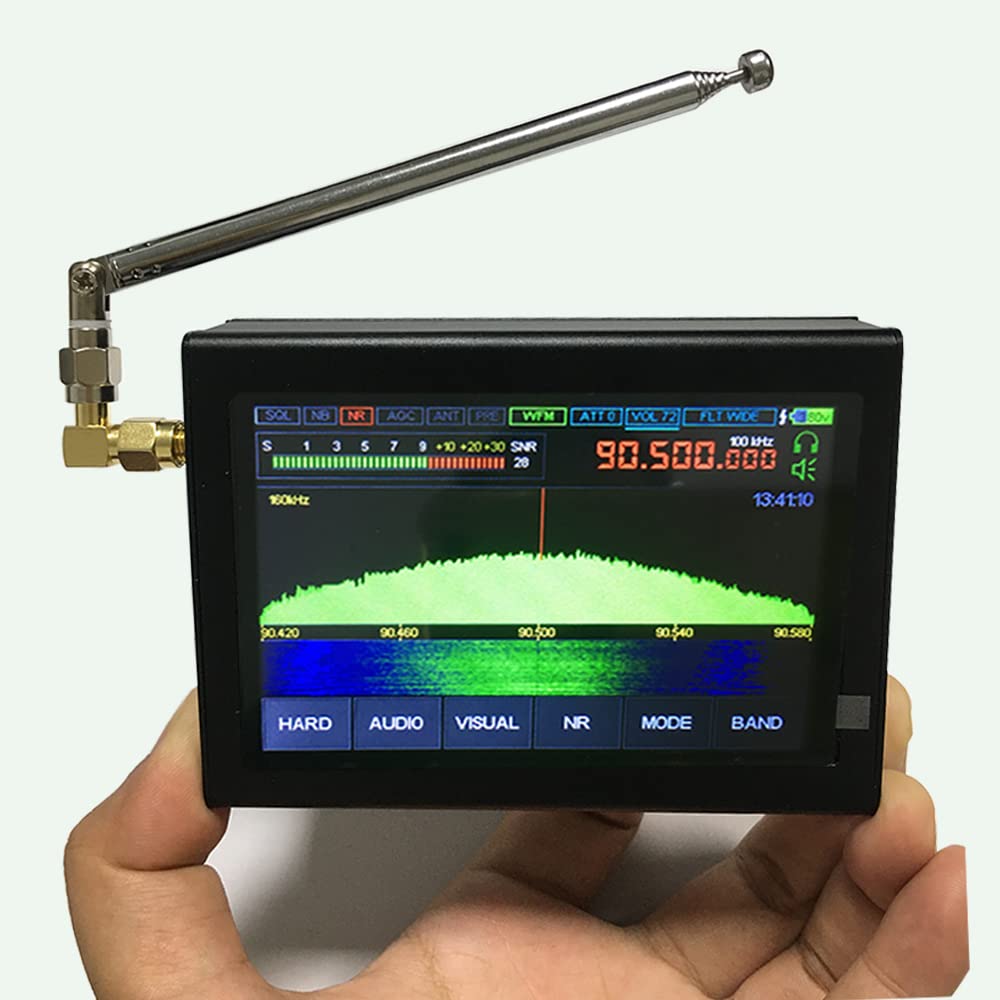

Upgraded V4 1.10d Malachite SDR Receiver 50KHz-2000MHz Wideband DSP HAM Radio with 3.5" Touchscreen & Aluminum Alloy Case - Perfect for Amateur Radio, Shortwave Listening, and Signal Analysis

This is an already registered version. Do not need to pay for register code again. Frequency is 50Khz~250Mhz and 400Mhz~2Ghz.1) Mode: Malachite DSP SDR Receiver H20002) 3.5 inch touching screen3) Controls: 2 encoders with buttons and touching screen;4) Speaker:a nice sound unit at the back.5) The receiver is built on the principle of SDR, the functionis determined by loaded software;6) Frequency range: 50Khz~250Mhz and 400Mhz~2Ghz 7) All types of analog modulation: FM, NFM, AM, LSB, USB;(CW)8) Powerful functions: variable filter width, adaptivenoise suppressor, threshold noise suppressor, for Noise Blanker, AGC,equalizer;9) The powerful stm32H743VIT6 with a clock frequency of 480MHz is applied;10) It is powered by an external TYPE-C interface andbattery (Built-in battery 3000mah)11) The reception on built-in telescope or external antennais to improve the HF reception on telescope antenna, and an additional boardwith source follower has been developed. The board will be built into standardreceiver design.12) 160 kHz span, with scalability13) Due to the characteristics of msi001 chip used, dynamicblocking range is about 85dB.Package Contents:* 1x Malachite SDR Receiver (builted-in battery included )* 1x Antenna* 1x N Connector*1x Bnc Connector*1x Screen Touching Pen* 1x Type-c Usb cable * 1x User Manual Tips:The Antenna come with H2000 is a 80~500MHz adjustableantenna.Select the WFM mode and set freq to 90~110MHZ to enjoy theWFM radio.If you need to receive AM or LSB USB , please use theright AM Antenna.

Frequency Range: 50 kHz~2.0GHz (Registered already 1.10d)

Modulation Mode: AM,LSB,USB,NFM,WFM,CW Decoder

Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB.

Large Screen: 3.5 inch capacitive touch screen; Aluminum Alloy shell: Better RF performance
